123820 DOD

Name: 123820 DOD
Brand: Dodge
SKU: 123820 DOD
Price: 242.32 USD
Availability: InStock

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

123820

CBT Inventory

Vendor Inventory

Availability:

7 in stock

Estimated dates are contingent upon manufacturer stock.

$242.32 / EA

Description

Ball Bearing Series:	211 Series
Base to Center Height:	2.5000
Base to Center Height (Unit):	INCH
Bearing Type:	Ball
Bolt Diameter:	0.6250
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	7.4400
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	6.3800
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	2.2200
Bore Length (Unit):	INCH
Dynamic Load Capacity:	9755
Dynamic Load Capacity (Unit):	POUND_FORCE
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	Unirex N2
Housing Construction:	Solid
Housing Material:	Cast Iron

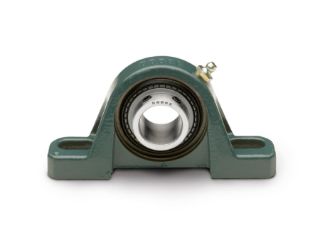

Housing Type:	Two-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	2500
Maximum Speed (Unit):	RPM
Seal Type:	Single-Lip Contact
Sensor Ready:	Adapter Required
Shaft Attachment:	Setscrew
Shaft Diameter:	2.1875
Shaft Diameter (Unit):	INCH
Standoff Housing:	No
Static Load Capacity:	6588
Static Load Capacity (Unit):	POUND_FORCE
Suitable for High Temperature:	No
Suitable For Washdown:	No
Take-Up Frame Size:	LD-40,TS-300
