HBLAC1 HWD

Name: HBLAC1 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBLAC1 HWD
Price: 69.29 USD
Availability: OutOfStock

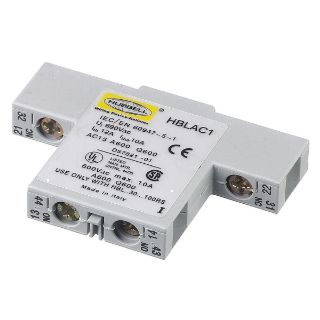

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBLAC1

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$69.29 / EA

Description

Brand Name

Wiring Device-Kellems

Type

3-Pole 2-Position Break After Break Pilot Duty Standard

Description

Wiring Device-Kellems Circuit-Lock® Auxiliary Contact, Switched Enclosure, 600 VAC, 0.41 A, For Use With: 3D383, 4CV74 and 2EAV6 Non-Fusible Enclosed Disconnect Switches, HBLDS Series Disconnect Switches, Threaded Mounting, Composite

Application

For HBLDS series switches and indoor applications

Standards

CSA Certified | UL 746C | UL94 V-0 Flammability Rating

Features

Break after break contact
Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
Molded-in or stamped-on ratings
Certified for current interrupting at full rated current
Withstands 3000 VAC minimum dielectric voltage
600 VAC maximum working voltage
10000 cycles mechanical
External full adjustable feet mounting
IP66 suitability moisture resistance
30/60/100 A disconnect switch
A600 pilot duty
Indoor dry unless protected by additional mean environmental conditions

Specifications

Amperage Rating:	0.41 A
Contacts:	1NC-1NO
Country of Origin:	PL
Material:	Composite
Mounting Type:	Threaded
Suitable For Use With:	3D383, 4CV74 and 2EAV6 Non-Fusible Enclosed Disconnect Switches, HBLDS Series Disconnect Switches
Voltage Rating:	250 V
